Ridgeline Plots: An Underrated Gem of Data Visualisation
A pretty useful plot which simplifies data distribution visualization.
Understanding the distributional differences of distinct groups in a variable is quite useful in uncovering insights around:
predictive modeling, and more.
But in such situations, many data scientists tend to create group-level distribution plots (histograms or density plots) on a single axis and compare them.
While this is (somewhat) okay when there are limited groups, in the presence of many groups, it can create cluttered plots, which may not reveal many insights about distributional differences:

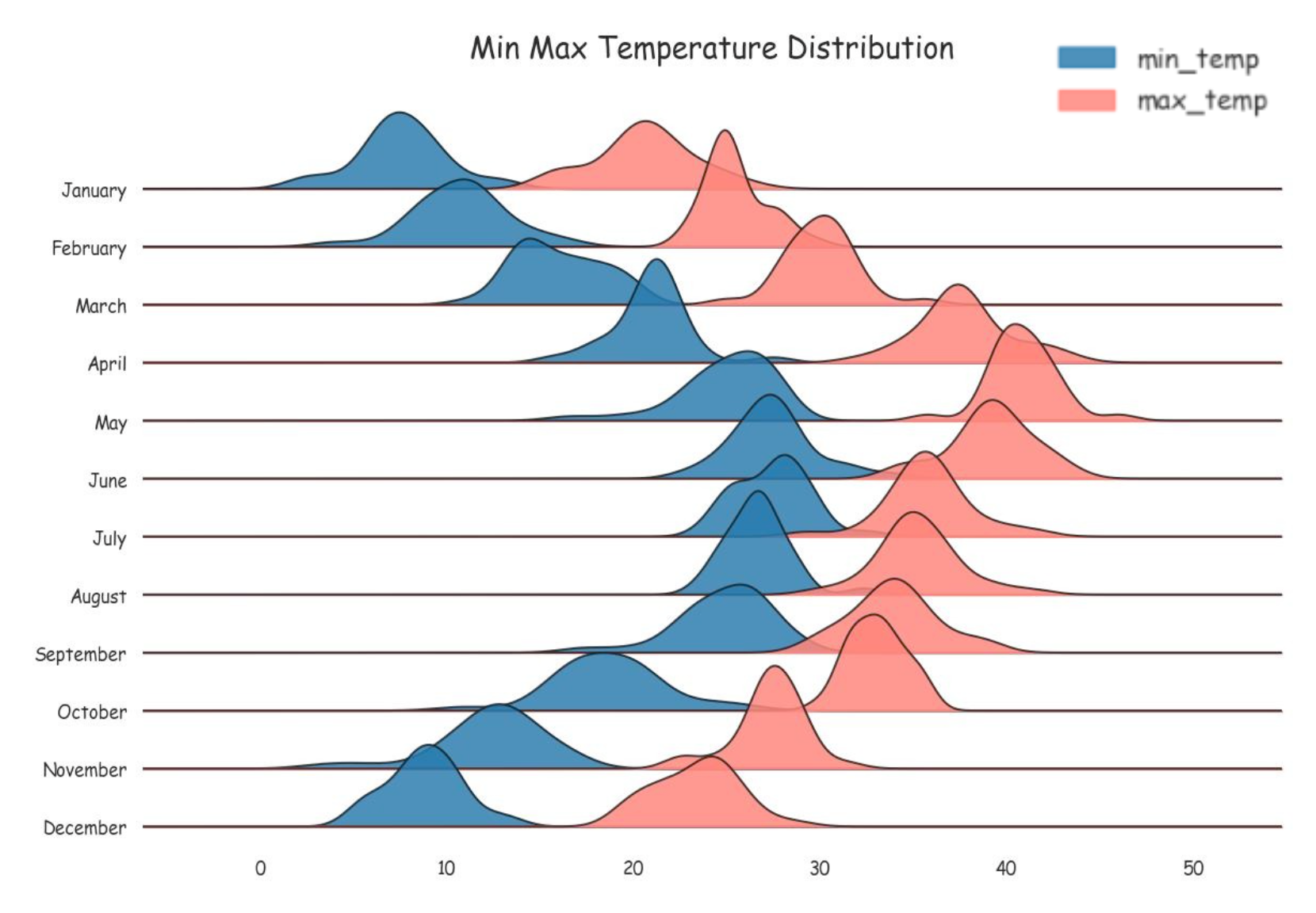

Ridgeline plots (shown below) are a pretty compact and elegant way to visualize the distribution of different variables (or categories of a variable).
More specifically, the vertical stacking on a common axis provides an easy comparison between groups and reveals many insights into the shape and variation of the distributions, which otherwise would be difficult to understand.
This allows us to compare the distributions of multiple groups side by side and understand how they differ.

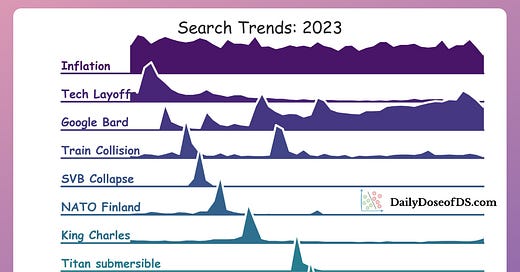

The image below is another classic example of Ridgeline plots. It depicts the search interest across various events that happened in 2023, and it’s so easy to visualize:
I have been wanting to write about Ridgeline plots for quite some time now. But I intentionally saved it for this time of the year because the above plot depicts a pretty neat usage of these plots, which you can easily relate to.
While Seaborn provides a way to create Ridgeline plots, I have often found the Joypy library to be pretty useful and easy to use:
When to consider Ridgeline plot?
Typically, creating a Ridgeline plot makes sense when the variable has anything above 3-4 groups. This is to avoid the overlap that might appear when visualizing them in a single plot:
Also, Ridgelines plots are relatively more useful when there is a clear pattern and/or ranking on the continuous variable plotted between groups like:
increasing then decreasing (and so on)…
decreasing then increasing (and so on)…
That is why the order in which you vertically stack the distribution of groups becomes quite important.
For instance, consider the above “Search trends” plot again but with a random arrangement of groups:
I don’t think I have to ask you which one is easier to visualize and understand the flow of events in 2023.
So these were some points that will help you determine whether a Ridgeline plot will be a good fit for visualizing your data.
I created this notebook for you to get started with Ridgeline plots using JoyPy: Ridgeline Plots Notebook.
👉 Over to you: What are some other gems of data visualization that deserve more attention?
